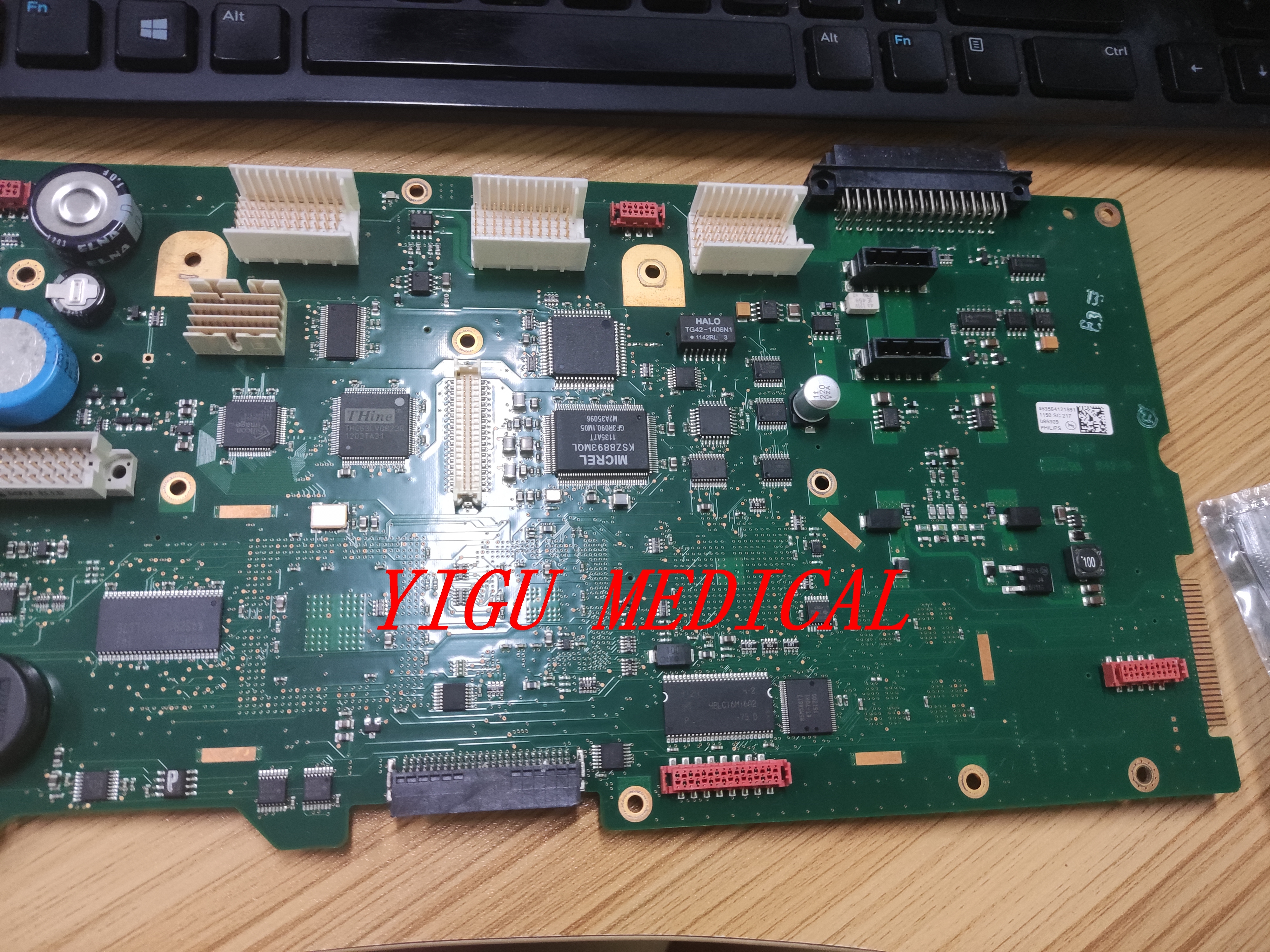

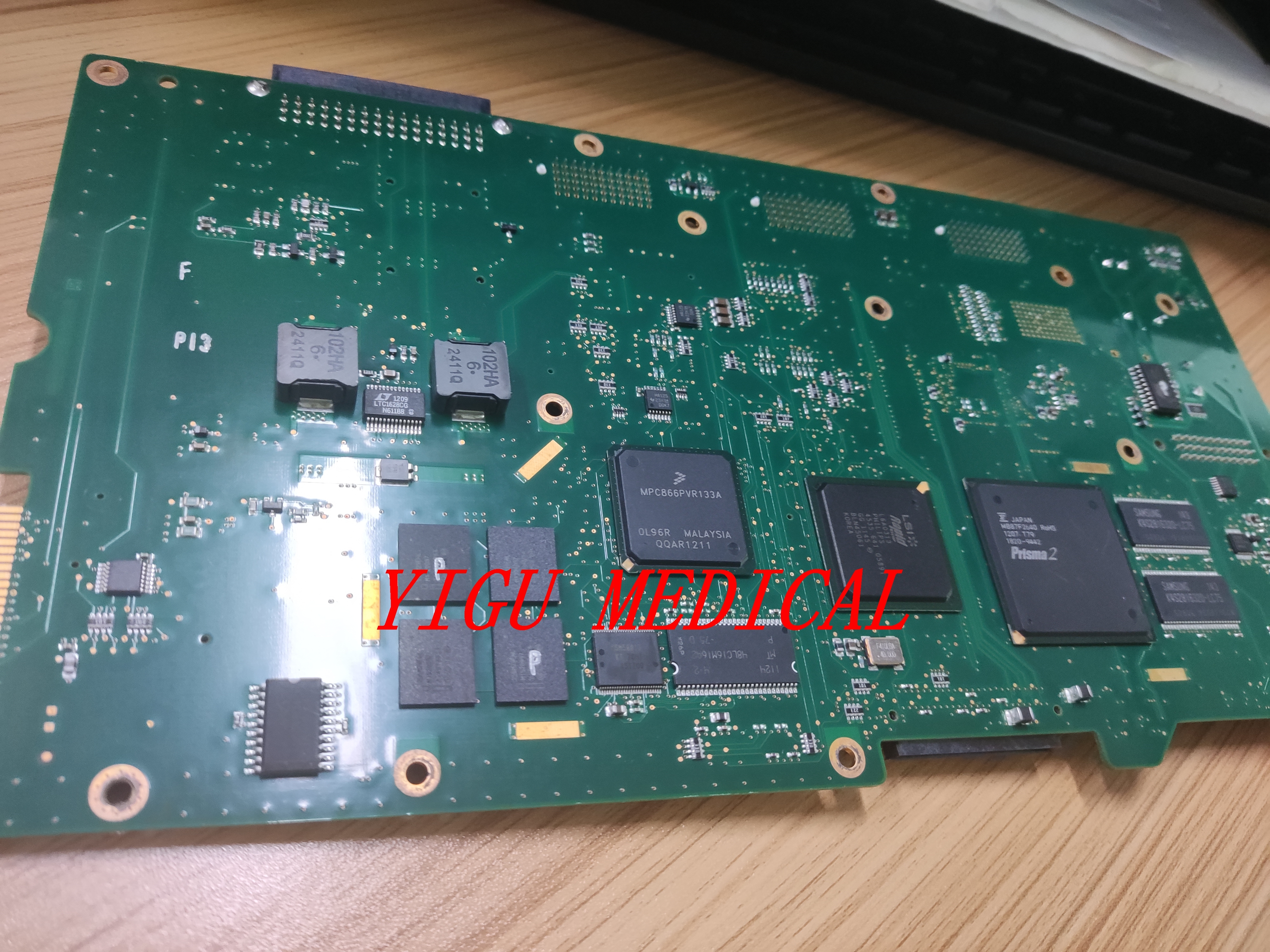

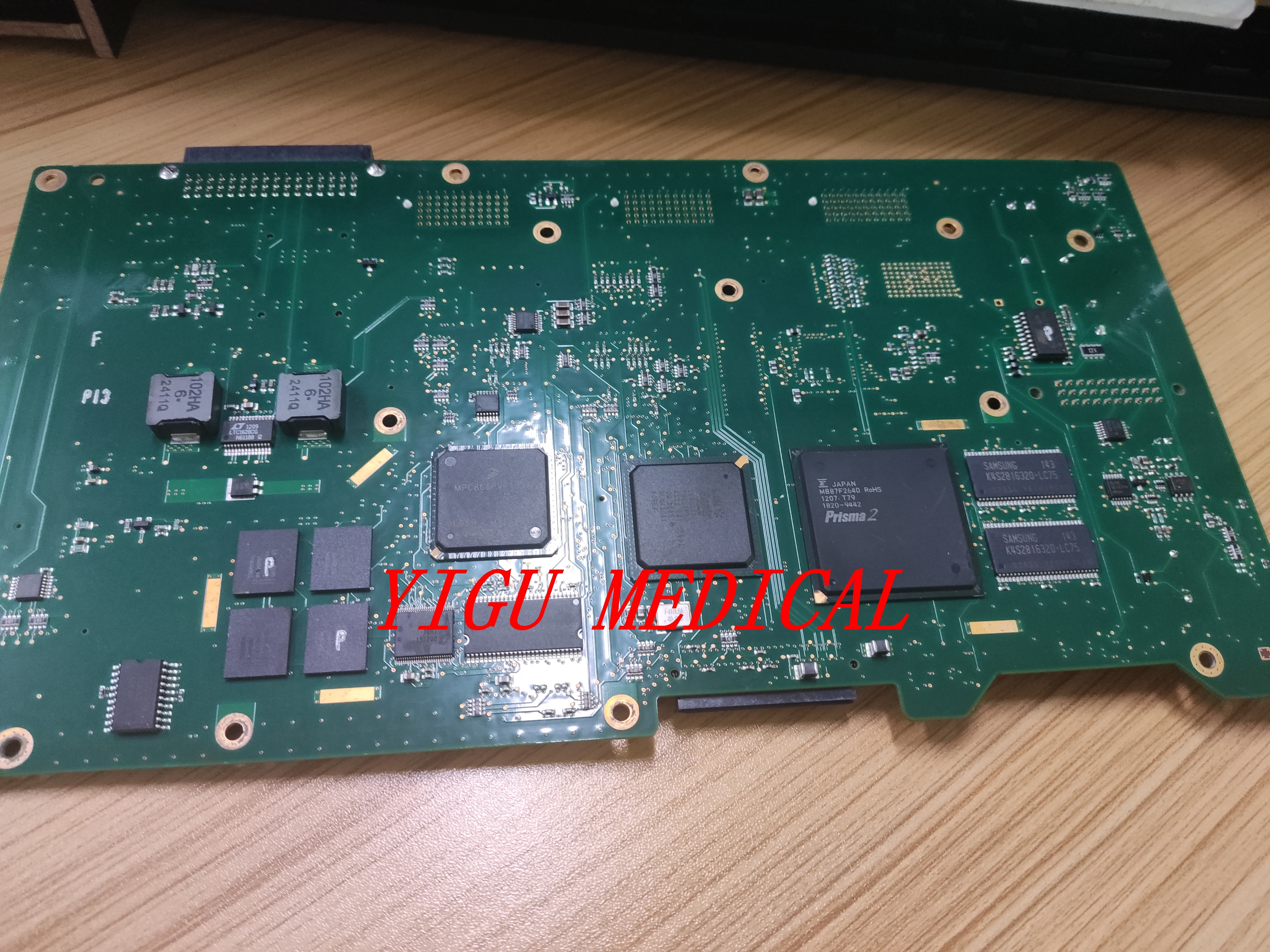

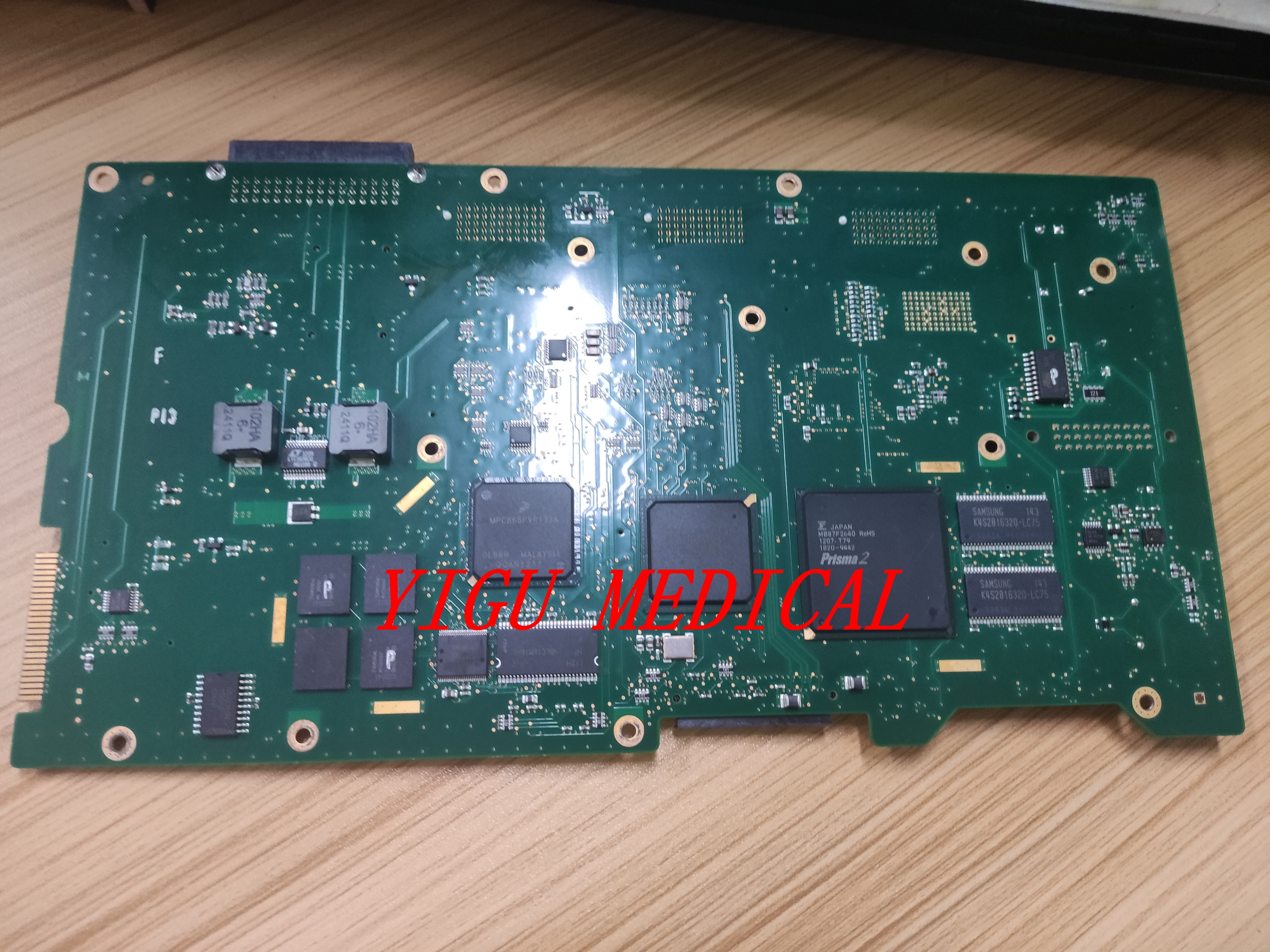

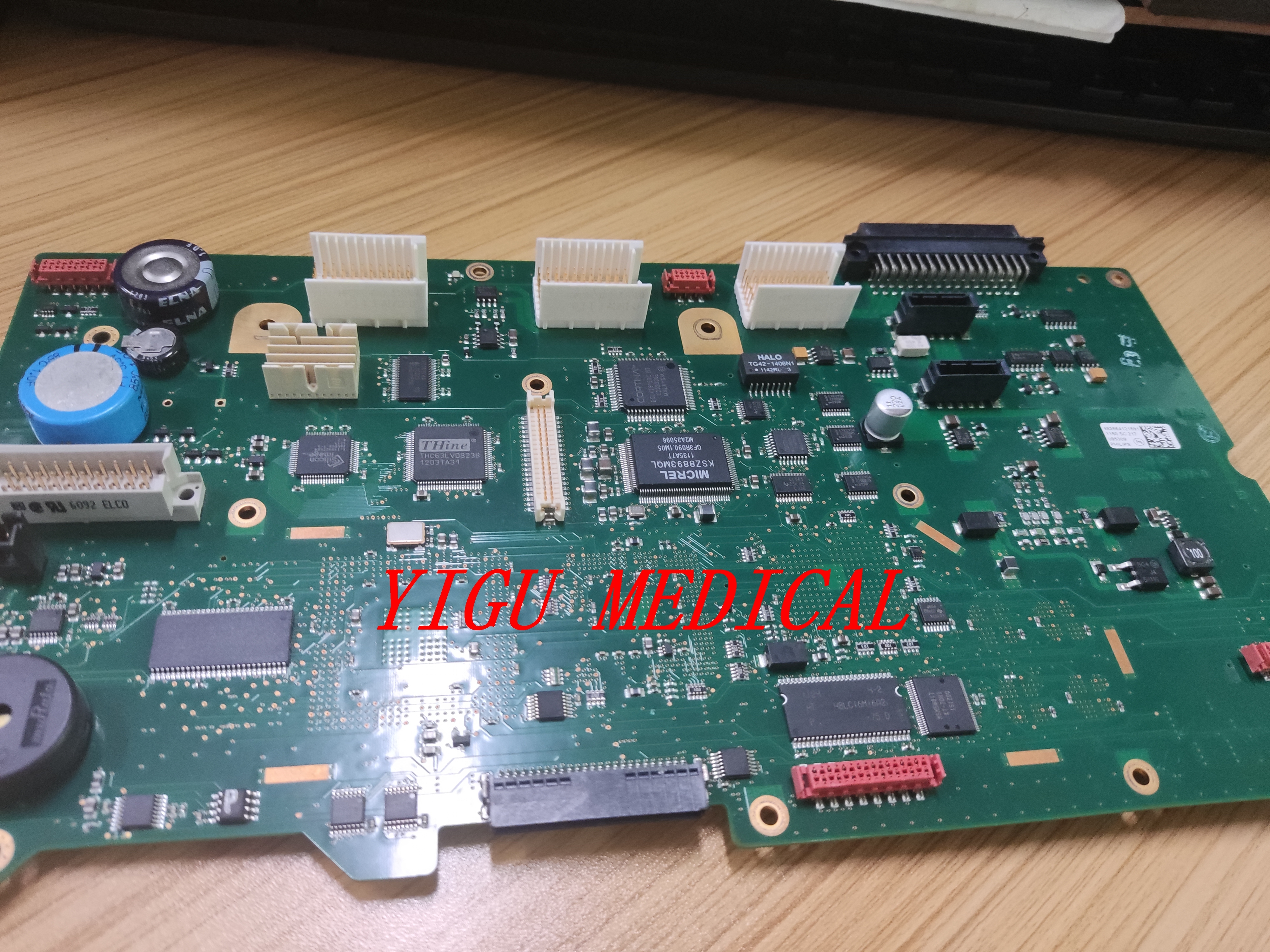

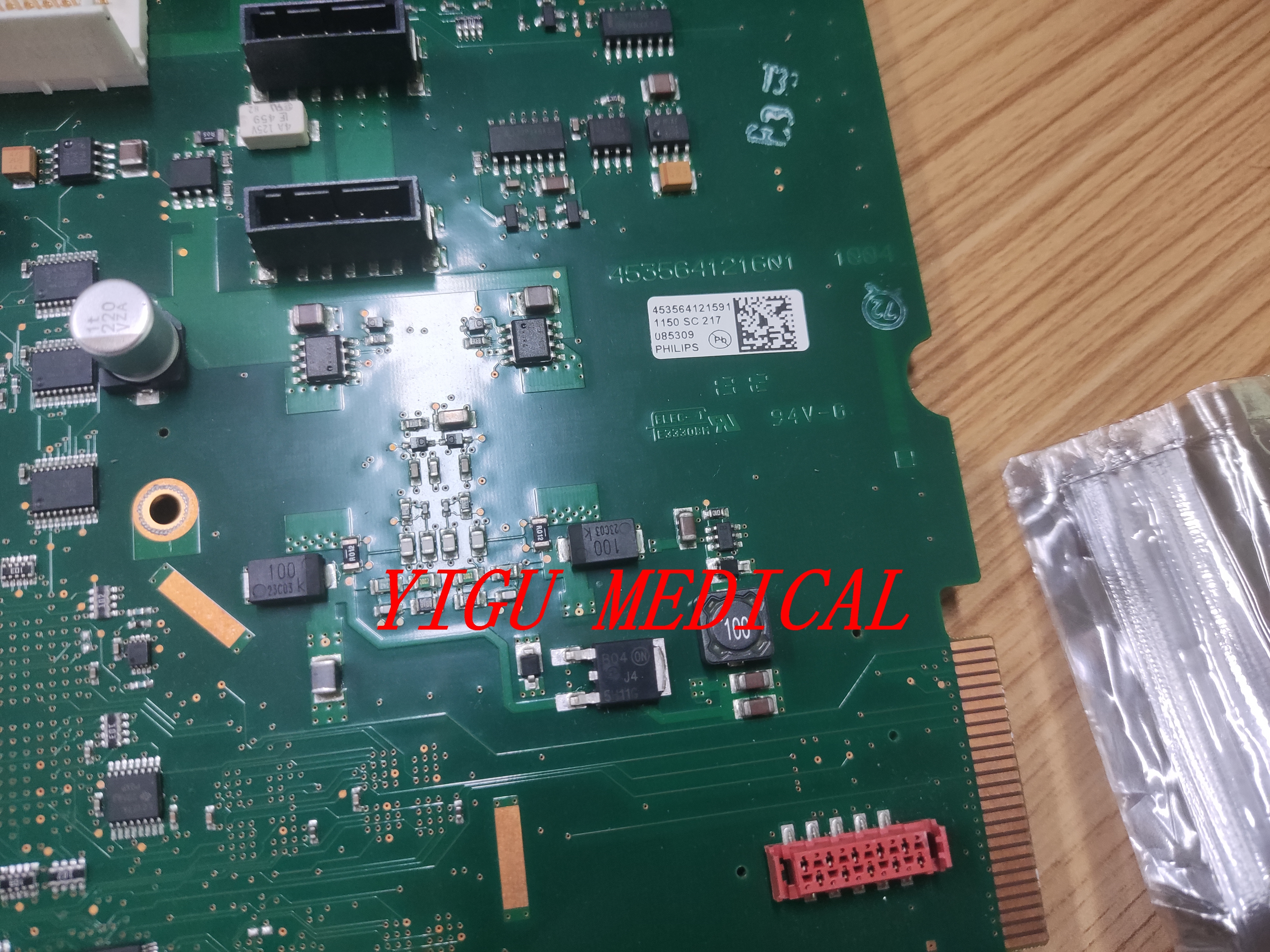

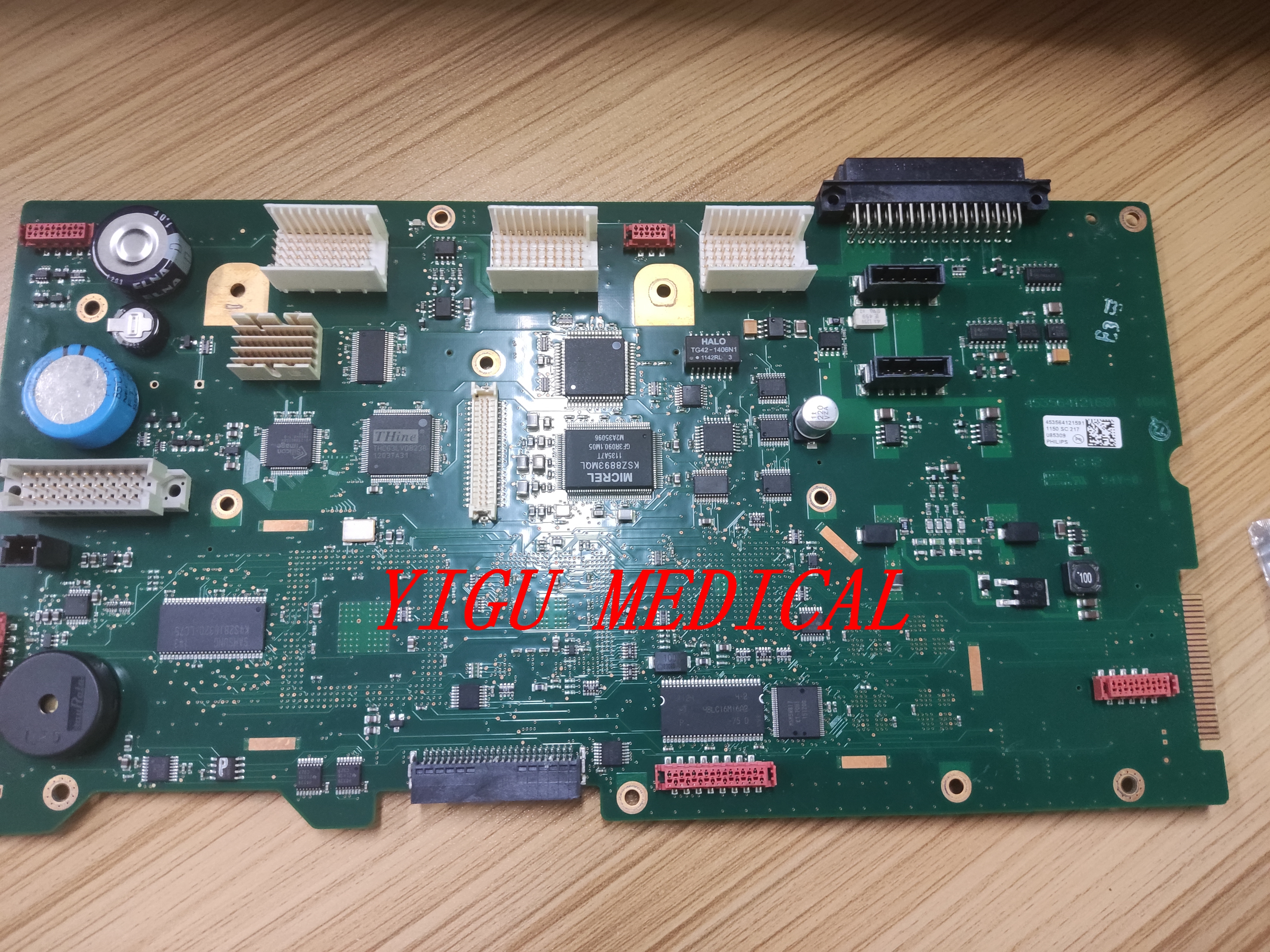

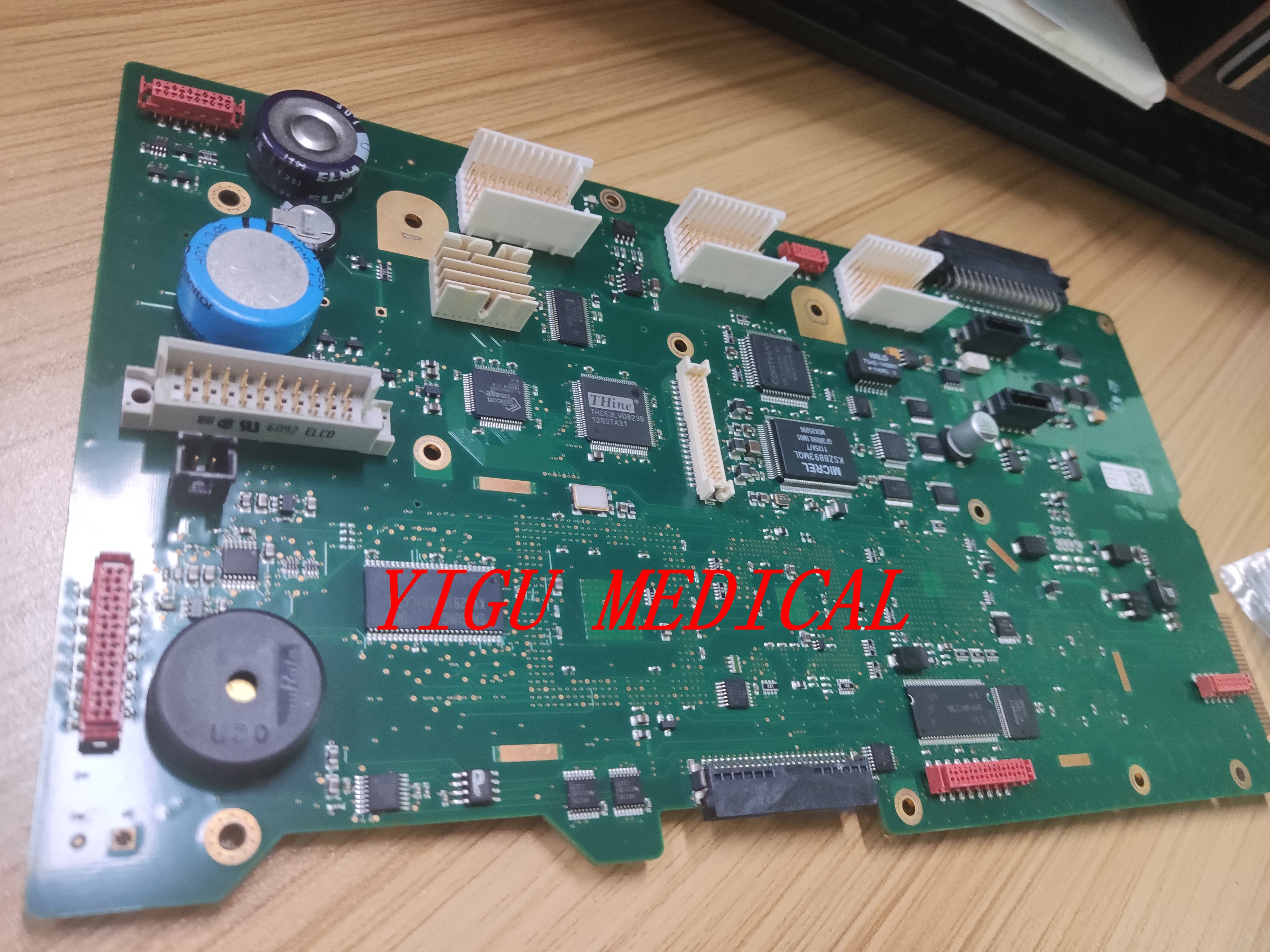

PH MX700 MX750 Patient Monitor Mainboard PN 453564121591 for Monitor Motherboard

The mainboard (or System Board) within a ** MX Series** patient monitor (encompassing models like the **MX400, MX500, MX600, MX700, and MX800**) is the fundamental core of this highly integrated patient monitoring platform. Unlike traditional monitors where each parameter is a separate "module," the MX series is renowned for its **all-in-one, single-board design**, where the vast majority of measurement functions are integrated directly onto the main system board.

This design philosophy makes the MX mainboard a exceptionally complex and critical component, acting as the central computational hub, signal processor, and communication nexus for the entire device.

Key Functions and Architectural Philosophy

The MX series mainboard is defined by its high level of integration. Its key functions include:

1. **Integrated Parameter Processing:**
* This is the defining feature. Instead of using separate, swappable modules for each parameter, the MX mainboard incorporates the core processing circuitry for key measurements directly onto the board. This typically includes:
* **ECG:** The analog front-end and digitization for electrocardiogram.
* **SpO₂:** The processing board for pulse oximetry is often integrated or directly connected.
* **NIBP (Non-Invasive Blood Pressure):** The control and calculation circuitry for the pump and pressure sensor.
* **Temp (Temperature):** The signal conditioning for temperature probes.
* **IBP (Invasive Blood Pressure)** and other advanced parameters (like EtCO₂) might be added via a dedicated **Parameter Extension Board** that plugs directly into the mainboard, but the core processing is still centralized.

2. **Centralized Computing and Control:**
* The mainboard houses the primary **CPU**, **chipset**, and **memory**. It runs the monitor's operating system (a specialized embedded OS) and the Philips IntelliVue software suite.
* It performs the complex task of synchronizing all data streams, running alarm algorithms, and rendering the user interface.

3. **Display and User Interface Management:**
* It generates the video signal for the high-resolution display.
* It interfaces with the touchscreen and front-panel controls (buttons, rotary knobs), translating user input into commands for the system.

4. **Data Storage and Network Communication:**
* The mainboard contains the storage (e.g., an embedded SSD or Flash memory) for:
* Trend data
* Full-disclosure waveform recording
* Alarm logs
* System software and configuration
* It features robust networking hardware (Ethernet controller) to connect seamlessly to the **Philips IntelliVue Information Center (IIC)** and hospital network, enabling central station monitoring and data export.

5. **Power Management:**
* It distributes and regulates power from the internal Power Supply Unit (PSU) and manages the backup battery system, ensuring uninterrupted operation during power transitions.

Common Components on the MX Series Mainboard

* **Main Processor (CPU):** A powerful, industrial-grade microprocessor to handle the simultaneous processing of multiple, high-fidelity waveforms and numerical data.
* **Chipset (Northbridge/Southbridge or SOC):** Manages data flow between the CPU, memory, and peripheral buses.
* **Memory:**
* **DDR RAM:** For running the operating system and applications.
* **Non-Volatile Storage:** An onboard SSD or eMMC chip for the OS, software, and patient data storage. This is a common point of failure as it ages.
* SpO₂ plethysmograph processing and calculation.
* NIBP measurement algorithms.
* **Power Regulation Circuits:** Multiple DC-DC converters and voltage regulators to provide clean, stable power to all sections of the board.
* **Communication Interfaces:** Controllers for Ethernet, USB, and serial ports.
* **Connectors for Peripherals:** Ports for the Parameter Extension Board, display panel, patient cable connectors, and external ports.

Common Issues and Failure Points

* **Storage Failure (Most Common):** The integrated storage (SSD/eMMC) has a finite read/write lifespan. Corruption or failure leads to boot failures, often indicated by error messages like **"No System," "Boot Error,"** or the monitor freezing on the Philips logo screen.

Critical Service and Repair Notes

* **High Level of Integration:** The integrated design means you cannot simply replace a failed "ECG module." A failure in an integrated function often necessitates replacing the entire mainboard.
* **Authorized Service Required:** The MX series mainboard is a highly proprietary and complex component. **Repairs and replacements must be performed by Philips-authorized service engineers.**
* **Calibration and Software:** Installing a new mainboard is not a simple swap. It requires specialized Philips service software to:
* Load the correct device software and configuration.
* **Perform critical safety and performance calibrations** for all integrated parameters (ECG, NIBP, etc.).
* Without this calibration, the monitor will not meet its specified accuracy and safety standards.
